Explosionproof 5120WH Wall Mounted Battery , ODM Lithium Batteries For Off Grid Solar

Product Categories
Dongguan Huaxin Power Technology Co., Ltd
Contact Now

Explosionproof 5120WH Wall Mounted Battery , ODM Lithium Batteries For Off Grid Solar

Brand Name : Smart

Certification : ISO9001, ISO14001, UL, CE, ROHS, etc

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 3000 PCS per Month

Delivery Time : 7-30days

Packaging Details : Standard Export Carton,Wooden Case ,Pallet etc.

Warranty : 5~8 Years

Cell Brand : CATL/BYD/SANYO/Panasonic/Sumsung/etc.

Cell Material : lithium Iron PhosPhate /NCM/NIMH/Coltbat.etc

Charge Method : CC/CV

Voltage : 51.2V/Customized

Capacity : 100A(Cutomized 200A,300A,500...)

Working Temperature : -20℃~50℃

Communication : RS485/CAN

Contact Now

5120WH Longer Cycle Time Explosion Proof NIMH Battery With BMS Ups Battery /Data Centers

Quick Details:

  • High Energy Density ,High Discharge Rate,High Saftery
  • Longer Cycle Life Time than Original Ba ttery
  • Design Flexible ,Multiple Port Input
  • OEM and ODM Are Acceptable
  • Enviromental Friendly ,Pollution Free
  • The shell uses ABS+PC, which is stronger and more environmentally friendly
  • Low Self-Discharge Rate ,Less than 3% monthly
  • BMS&PCM function: Over-charge protection, Over-Discharge protection, Over-current protection, Short Circuit protection, High Temperature protection, Balance Charge/Discharge protection, Communication protocol function, Battery Power indicator.​

Application:solar , wind complementary stored energy streetlights, energy storage systems, household energy storage. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power supply and other system standby power etc

Specification
Battery Voltage 48V
Battery Capacity 100A
Cooling Method Natural Cooling
Rated Voltage 51.2 V
Rated Capacity 100A
Rated Power 5120WH
Charging and Discharging Port (
joint or separate)		 Joint Port
System Charge Termination Voltage 57.6V
System DisCharge Termination Voltage 43.2V
Cell Charge protection voltage 3.75V
Cell Discharge protection voltage 2.5V
Charging Working Temperature Range 0℃~50℃
Charging Working Temperature Range -20℃~50℃
Max.Cont.Charging Current 50A
Max.Cont.Discharging Current 100A
Cycle Time 1500 Cycle Time at 25℃0.2C Charge and Discharge
Battery Box(W*T*D)mm 370*620*375mm
Weight 55KG
Display Screen LCD

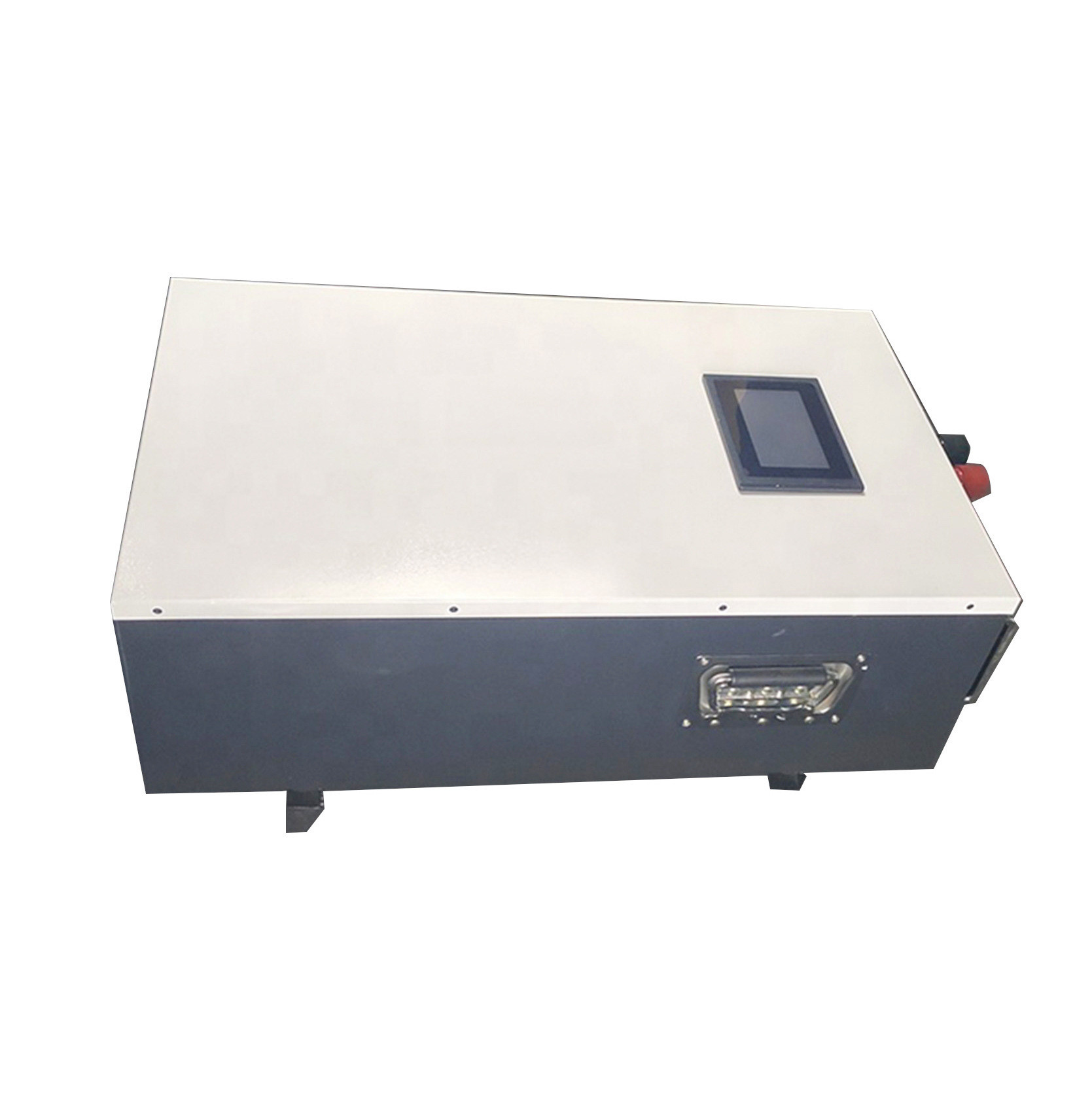

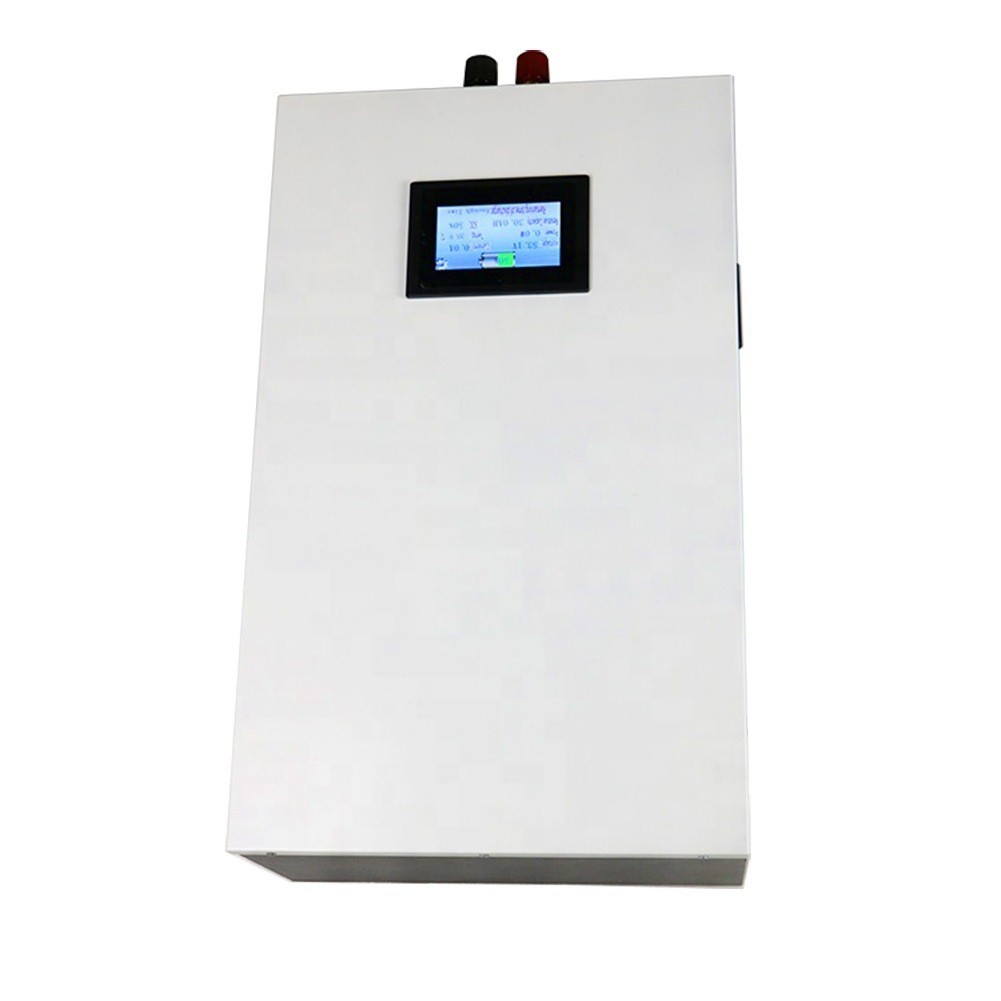

Explosionproof 5120WH Wall Mounted Battery , ODM Lithium Batteries For Off Grid Solar

Explosionproof 5120WH Wall Mounted Battery , ODM Lithium Batteries For Off Grid Solar

Explosionproof 5120WH Wall Mounted Battery , ODM Lithium Batteries For Off Grid Solar

What can we offer?
1.Competitive price: factory price, we can give you more discount if order quntity is good.
2. Technical support : we have 60 person R&D team, can help you solve any technical problems and privde customized battery solutions according to your needs.
3. Quality Assurance:we have our own testing lab, all the batteries have 100% QC inspection before delivery, and we can provide testing reports for you.
4. After-sale service: we have excellent after-sale service team, if you have any question about this product,pls feel free to contact us, we'll reply you within 12 hours.
5. Customized batetry solutions based on customer's needs, accept OEM/ODM orders.

Delivery Methods:
① By express UPS/DHL/FEDEX/TNT (It takes 5~7 days to arrive).
② By airfreight (It takes about 7~10 days to arrive) .
③ By sea shipment (It takes about 30 days to arrive).
